Infrared LED Obstacle Lights for Wind Turbines & Met Masts
ICAO Low-intensity Type A and B, FAA L-810, Infrared LED Aviation Obstruction Lights.

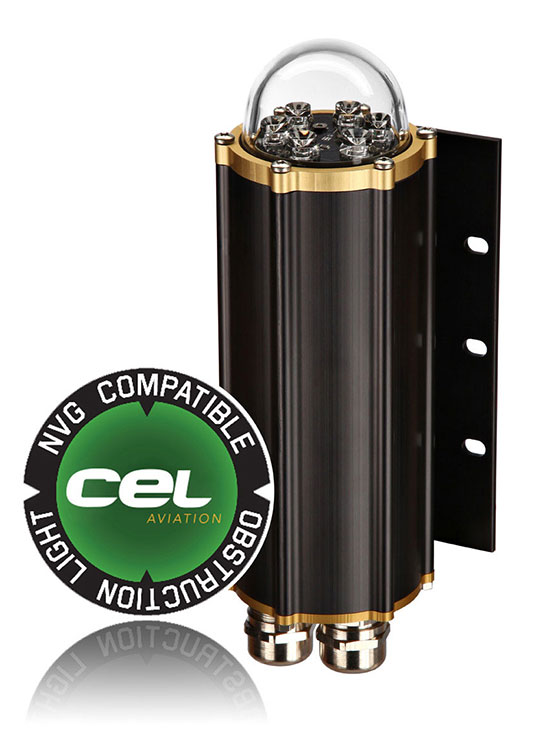

Contarnex infrared LED obstruction lights meets both ICAO Low-intensity Type A (10cd) and B (32cd), and FAA L-810 requirements. Obelux infrared lights are fully Night Vision Goggle (NVG) compatible. The lights meet also Finnish Civil Aviation Authority (TraFi) regulations for infrared obstruction lights.
Key features
▪ Key features
▪ MOD compliant
▪ LED technology
▪ Extremely reliable
▪ Very long lifetime
▪ Low power consumption
▪ 5 year warranty
▪ Easy to install

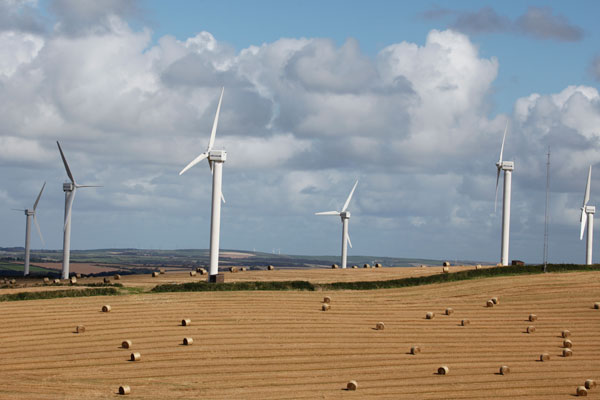

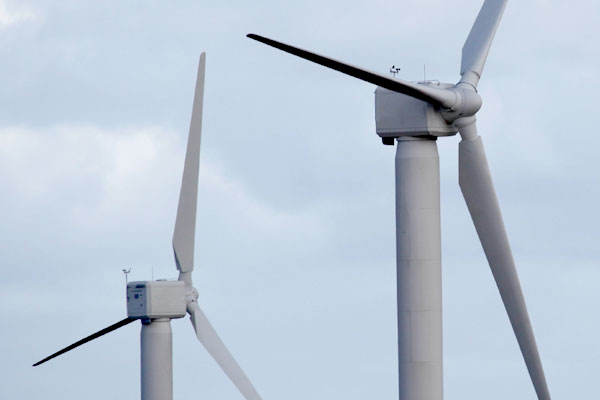

The increase of Wind Turbines developments and Met Masts installations across the UK has caused the MOD great concerns with regards to military night flying training, which is conducted at heights where wind turbines and met masts present a significant aviation hazard.
The MOD Low Flying Operations are aware that the majority of military night low flying is now conducted with night vision goggles (NVGs), and after a series of tials to determine the suitability of NVG-compatible IR obstruction lighting the MOD approved CEL infrared obstruction lighting for low flying aviation safeguarding of on-shore turbines in 2010.
These trials were conducted by the MOD, QinetiQ and the RAF Centre for Aviation Medicine, thus resulting in fully compliant with MoD regulation Night vision goggles (NVGs) has resulted In safe and consistent detection ranges.
When requesting lighting on wind turbines, the MOD will specify IR lighting as an option wherever possible in the interests of public amenity.

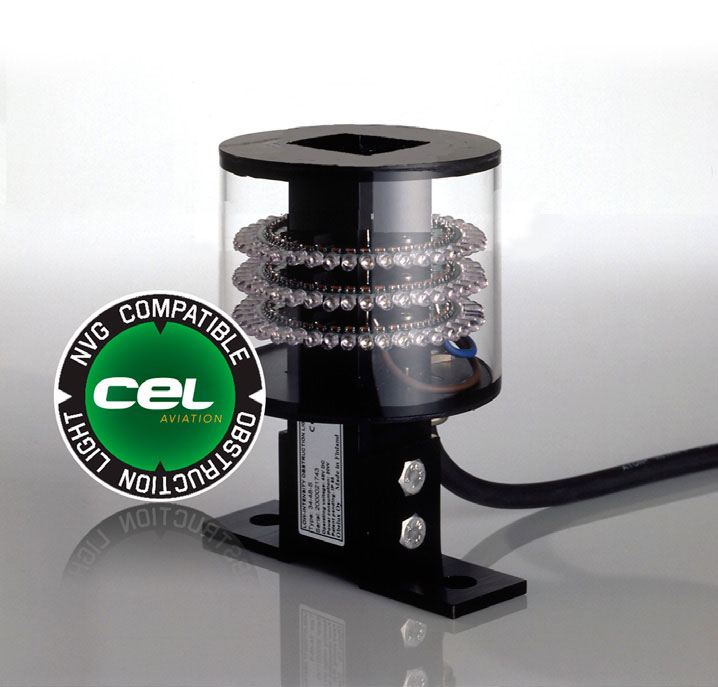

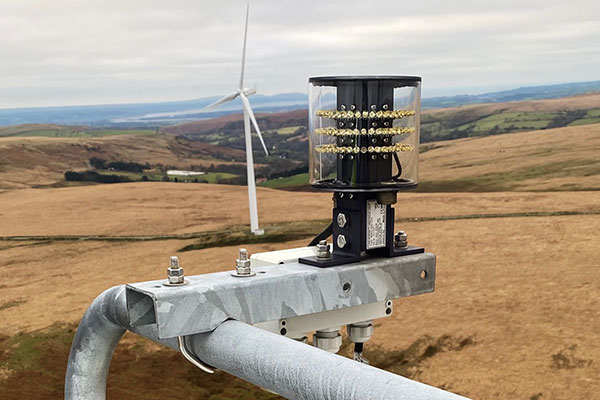

On-Shore Infrared Lighting

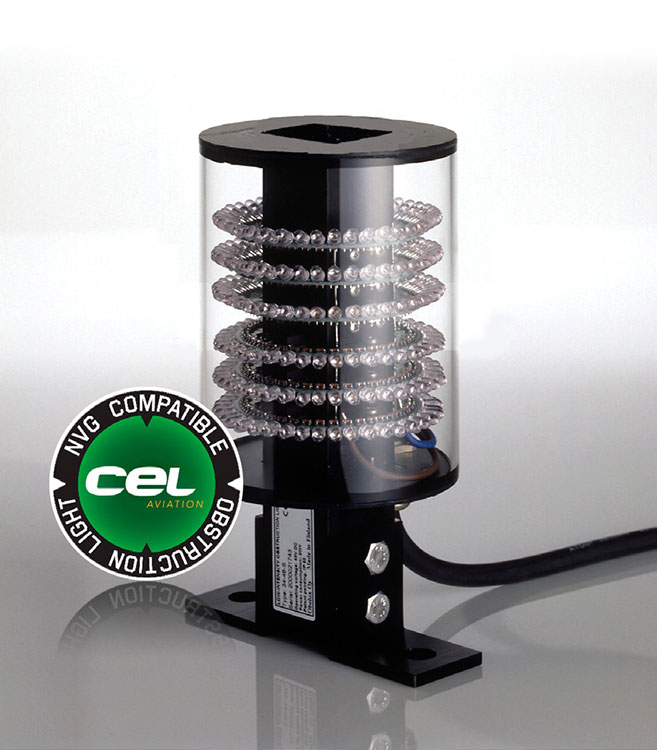

Infrared LED Obstruction Warning Lights (MOD compatible) |
 |
||||
|---|---|---|---|---|---|
 |
Order Code | IR Wavelength | Operating voltage | Description | Datasheet |
| CEL-IR850-012-CST | 850nm | 12VDC | MOD Low Flying, Approved lighting | Download | |
| CEL-IR850-024-CST | 850nm | 24VDC | MOD Low Flying, Approved lighting | Download | |
On-Shore Infrared and Red Lighting
Infrared & Visual Red LED Obstruction Warning Lights (MOD compatible) |
|
|||||
|---|---|---|---|---|---|---|
 |
Order Code | IR Wavelength | Nominal Intensity | Operating voltage | Description | Datasheet |
| CEL-IR850-R-012-CST | 850nm | >25cd RED | 12VDC | MOD Low Flying, Approved lighting + Visual Red | Download | |
| CEL-IR850-R-024-CST | 850nm | >25cd RED | 24VDC | MOD Low Flying, Approved lighting + Visual Red | Download | |
Combination Infrared and Red Lighting
Infrared + Red LED Obstruction Warning Lights |
|
|||||
|---|---|---|---|---|---|---|
 |
Order Code | IR Wavelength | Nominal Intensity | Operating voltage | Description | Datasheet |
| CEL-LI-10+IR-ACW-A | 850nm | 10cd RED | 100-240VAC | Download | ||
| CEL-LI-10+IR-ACW-F | 850nm | 10cd RED | 100-240VAC | Download | ||
| CEL-LI-10+IR-ACW-PCFL | 850nm | 10cd RED | 100-240VAC | Download | ||
| CEL-LI-10+IR-DCW-A | 850nm | 10cd RED | 10-60VDC | Download | ||
| CEL-LI-10+IR-DCW-F | 850nm | 10cd RED | 10-60VDC | Download | ||
| CEL-LI-10+IR-DCW-PCFL | 850nm | 10cd RED | 10-60VDC | Download | ||
| CEL-LI-32+IR-ACW-A | 850nm | 32cd RED | 100-240VAC | Download | ||
| CEL-LI-32+IR-ACW-F | 850nm | 32cd RED | 100-240VAC | Download | ||
| CEL-LI-32+IR-ACW-PCFL | 850nm | 32cd RED | 100-240VAC | Download | ||
| CEL-LI-32+IR-DCW-A | 850nm | 32cd RED | 10-60VDC | Download | ||
| CEL-LI-32+IR-DCW-F | 850nm | 32cd RED | 10-60VDC | Download | ||
| CEL-LI-32+IR-DCW-PCFL | 850nm | 32cd RED | 10-60VDC | Download | ||
| CEL-LI-IR850-230-F-LED | 850nm | - | 230VDC | Download | ||

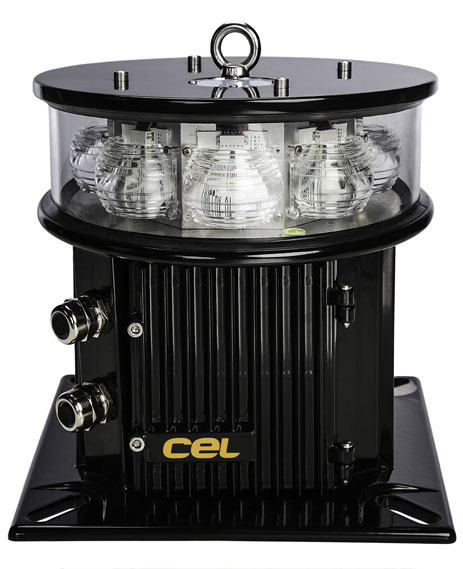

ICAO Medium Intensity Type C - Wind Turbines UK |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Order Code | Colour | Nominal Intensity |
Operating voltage |
Power | Photocell/ flasher |
Connectivity | Description | Datasheet |
CEL-WT-MIC |
Red | 2,000cd | 230VAC | 25W | Yes/Yes | ModBus Standalone | Robust Intelligent Red Medium Intensity Lights are fully compliant to ICAO, EASA, DIO and FAA. |
Download | |
