High Intensity LED Obstruction Lights & Obstacle Lighting (Aircraft Warning Lights)

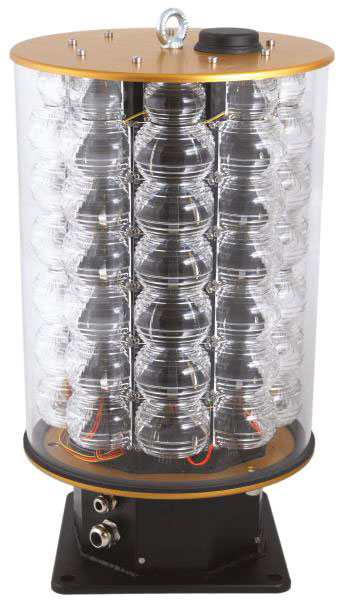

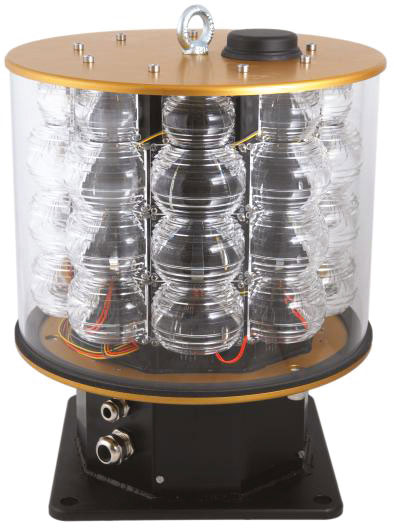

ICAO High-intensity, 50 000cd, stand-alone, LED Aviation Obstruction Lights.
Contarnex high-intensity omni-directional obstruction light is designed to mark tall structures such as wind turbines, towers, and masts. Contarnex high-intensity 50 000cd stand-alone unit has an integrated Day/Night switch and flasher. Additional options such as GPS synch., infra-red, and Ethernet interface available on request.
Key features
▪ Based on LED Technology
▪ Provides 50 000cd White Flashing at Day
▪ Heater as an option for cold climate
▪ Stand-alone light - no external cabinets required
▪ 5 Year Warranty
ICAO HI 50,000cd High Intensity Lights (Stand Alone ) |
 |
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Order Code | Colour | Nominal Intensity |
Operating voltage |
Power | Photocell/ flasher |
Fault Monitoring |
Description | Datasheet |
| CEL-HI-50KWD-230-A | White | 50,000cd | 230VAC | 160VA | Opt | Opt | White High Intensity: TraFi | Download | |
| CEL-HI-50KWD-230-A | Red/ White |
50,000cd/ 2,000cd |
230VAC | 160VA | White High Intensity: TraFi | Download | |||
ICAO HI Type B 100,000cd High Intensity Lights (Stand Alone ) |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Order Code | Colour | Nominal Intensity |
Operating voltage |
Power | Photocell/ flasher |
Fault Monitoring |
Description | Datasheet |
| CEL-HI-100KW-115-A | White | 100,000cd | 110VAC | 280VA | Opt | Opt | White High Intensity: ICAO Type B | Download | |
| CEL-HI-100KW-230-A | White | 100,000cd | 230VAC | 280VA | Opt | Opt | White High Intensity: ICAO Type B | Download | |
| CEL-HI-100KWD-115-A | Red/ White |
100,000cd | 110VAC | 280VA | Opt | Opt | White High Intensity: ICAO Type B – Red Medium Intensity Type B/C | Download | |
| CEL-HI-100KWD-230-A | Red/ White |
100,000cd | 230VAC | 280VA | Opt | Opt | White High Intensity: ICAO Type B – Red Medium Intensity Type B/C | Download | |
ICAO HI Type B 100,000cd High Intensity Lights |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Order Code | Colour | Nominal Intensity |
Operating voltage |
Power | Photocell/ flasher |
Fault Monitoring |
Description | Datasheet |
| CEL-HI-100KW-x | White | 100,000cd | LHC | 150VA | - | - | White High Intensity: ICAO Type B | Download | |
ICAO HI Type A 200,000cd High Intensity Lights |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Order Code | Colour | Nominal Intensity |
Operating voltage |
Power | Photocell/ flasher |
Fault Monitoring |
Description | Datasheet |
| CEL-HI-200KW-x | 200,000cd | LHC | 312W | - | - | White High Intensity: ICAO Type A | Download | ||
| CEL-HI-200KW-2KR-x | 200,000cd | LHC | 312W | - | - | White High Intensity: ICAO Type A – Red Medium Intensity Type B/C | Download | ||
